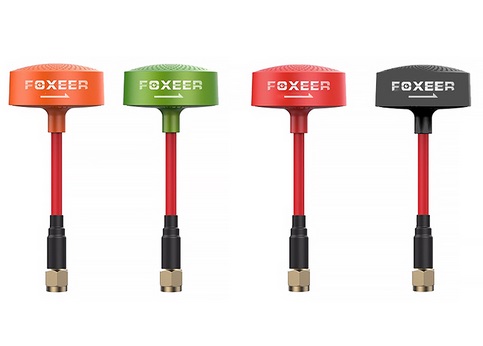

Product name:Foxeer 5.8G 3dBi TX/RX RHCP Circular-polarized Omni FPV Antenna
Product code:HSM-FX001
Item name: 5.8G 3dBi Antenna
Gain: 3DBi
SWR: <1.5
Weight: 12g
Material: Cu
Polarization: omni
Max power: 50W
Resistance: 50Ω
Polarization: RHCP
Connector: RP-SMA / SMA
Color: Green,Orange,Black,Red
SWR: <1.5, Tuned for 5600~5950Mhz
Frequency range: 5600-5950 MHz
3dB horizontal lobe width: 360°
3dB verticle lobe width: 120°
lightnings protection: DC Grounded
Size: 105×35mm (feeder line 75mm)
