Description

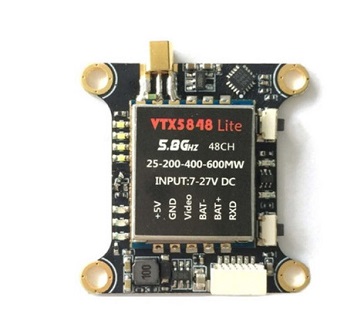

Product name:VTX5848 LITE 48CH 5.8G 25/100/200/400/600mW Switchable
Product code:HSM-2529B
Specifications:
Input voltage: DC 7-27V
Input current: 16.4V(4s), 600mW=360 MA±10MA
Output voltage: DC 5V 1A
Output power: 25/100/200/400/600mW switchable
Channel: 48CH
Frequency switch: manual button/OSD (simultaneous support)
Connector: MMCX (with sma extension cable)
Size: 36x36x9mm
Mounting hole: 30.5x30.5mm, M3
Weight: ≤6.4g (without antenna and connector)
