Description

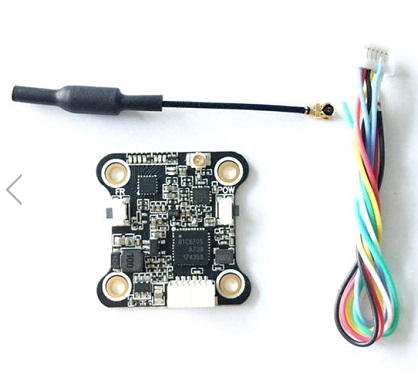

Product name:5.8g 48ch 25/100/200MW 5848 Video Transmitter
Product code:HSM-2529A
Specifications:
Input voltage: DC 7-27V
Input current: 16.4V(4s), 200MW=240MA±10MA
Output voltage: DC 5V 1A
Output power: 25/100/200mW switchable
Channel: 48CH
Frequency switch: manual button/OSD (simultaneous support)
Connector: IPEX
Size: 27mm*27mm*4mm
Mounting hole: 20*20mm, M2.5
Weight: ≤2.4g (without antenna and connector)
Features:
-Stable output power, long transmission distance
-Fast 3-speed power switch, independent two red indicator, indicating the current output power 25/ 100/ 200MW
-Using 4*3 LED display 48 channel
-Support OSD signal remote frequency control, support PIT mode ( omW output power only can be open in OSD)
-With power filter
-Antenna using IPEX connector, reducing the space
-Strong power chip, input up to 27V, output 5V/1A low ripple, less interference
-Do not install antenna to power up, and it will not burn the VTX
-20*20mm mounting hole distance, suitable for CC3D, NAZE32, F3, F4, F7 flight controller
