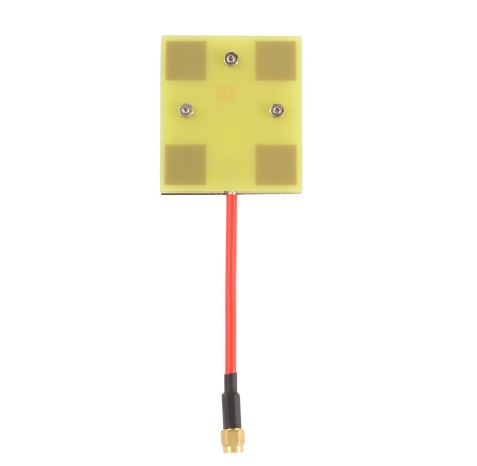

Product name:5.8G 14DBI High Gain Panel Antenna
Product code:HSM-2505G
Specificatons:
Specially designed for RC FPV, mini size, high gain, low SWR and high self recovery function at any angle.
Transmitting distance: 15km with 5.8G 1200mw VTX/RX.
5km with 5.8G 600mw VTX/RX.
Frequency: 5600-5950MHz
Gain-dBi: 14dBi
3db vertical beamwidth: 40 degree
3db horizontal beamwidth: 35 degree
Impedance: 50ohm
Polarization: Vertical
Sidelobe suppression>=13DB
VSWR: <=1.5
Front-to-back ratio: >=25DB
Maximum power: 50W
Connector:RPSMA Plug(2519G1),SMA Plug(2519G2)
